Specifications:

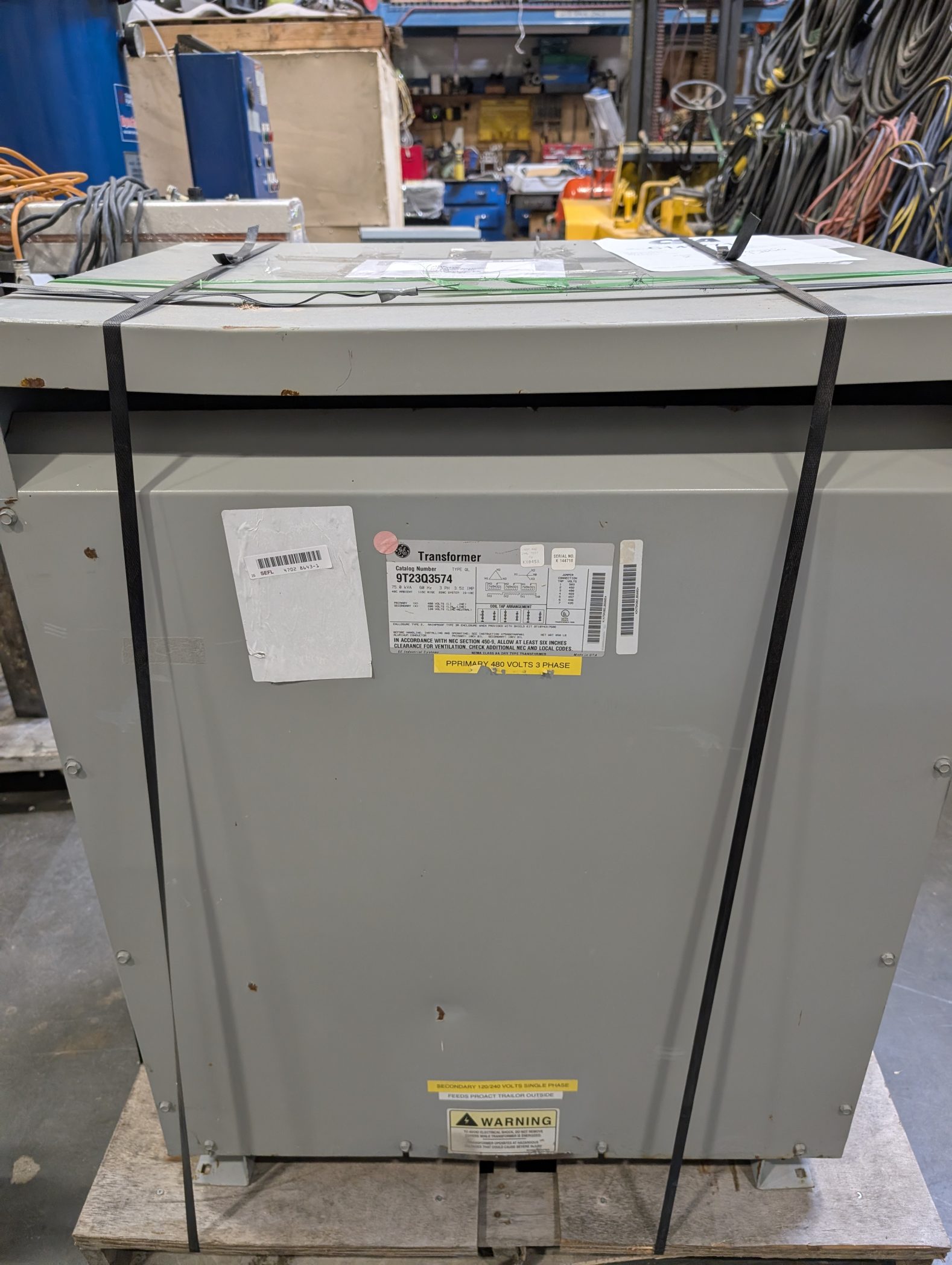

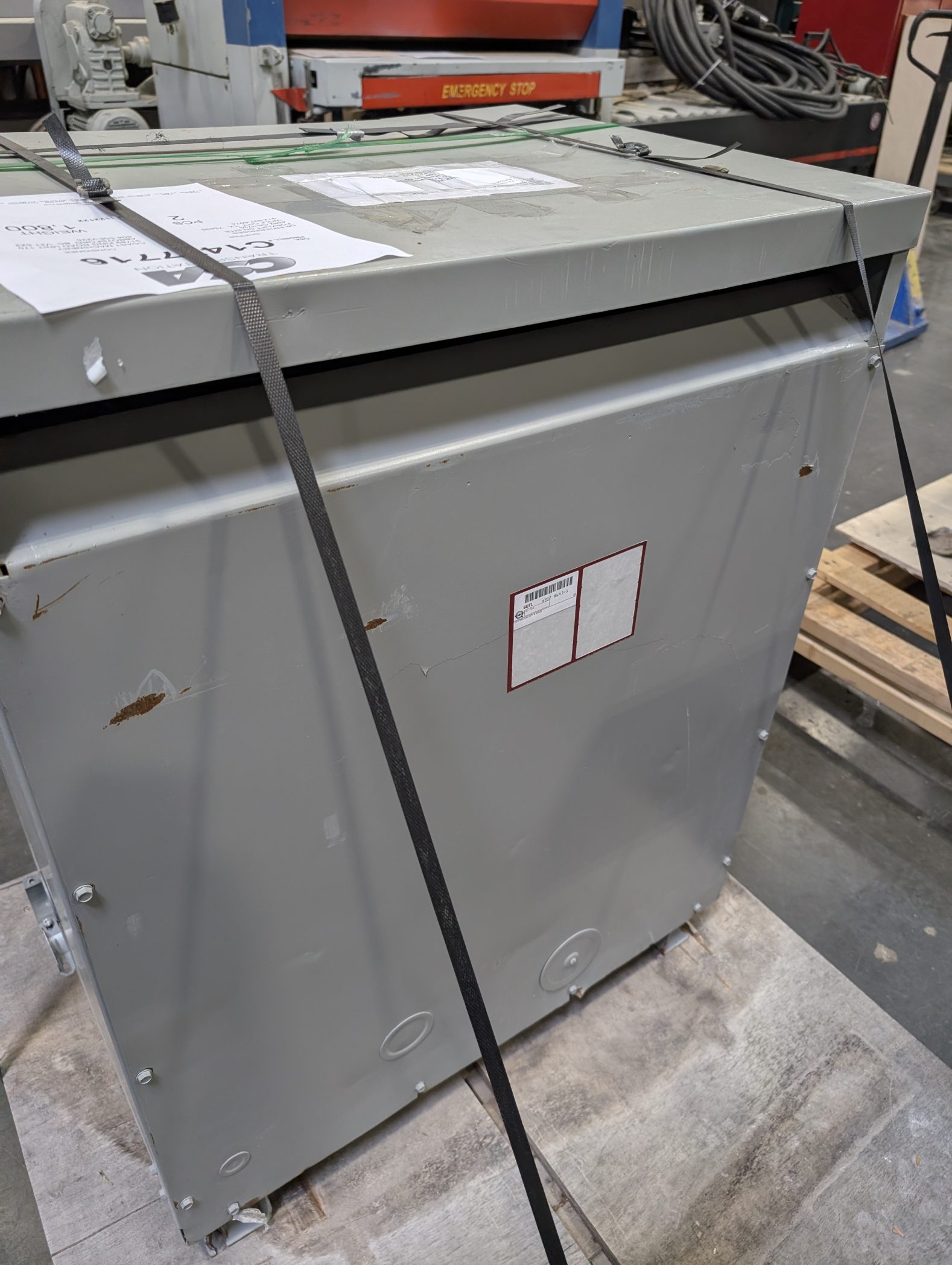

The General Electric (GE) 9T23Q3574 is a 75 kVA, 3-phase, dry-type general-purpose transformer designed to step down distribution voltage to standard commercial or industrial load voltages.
- Manufacturer: General Electric (GE)

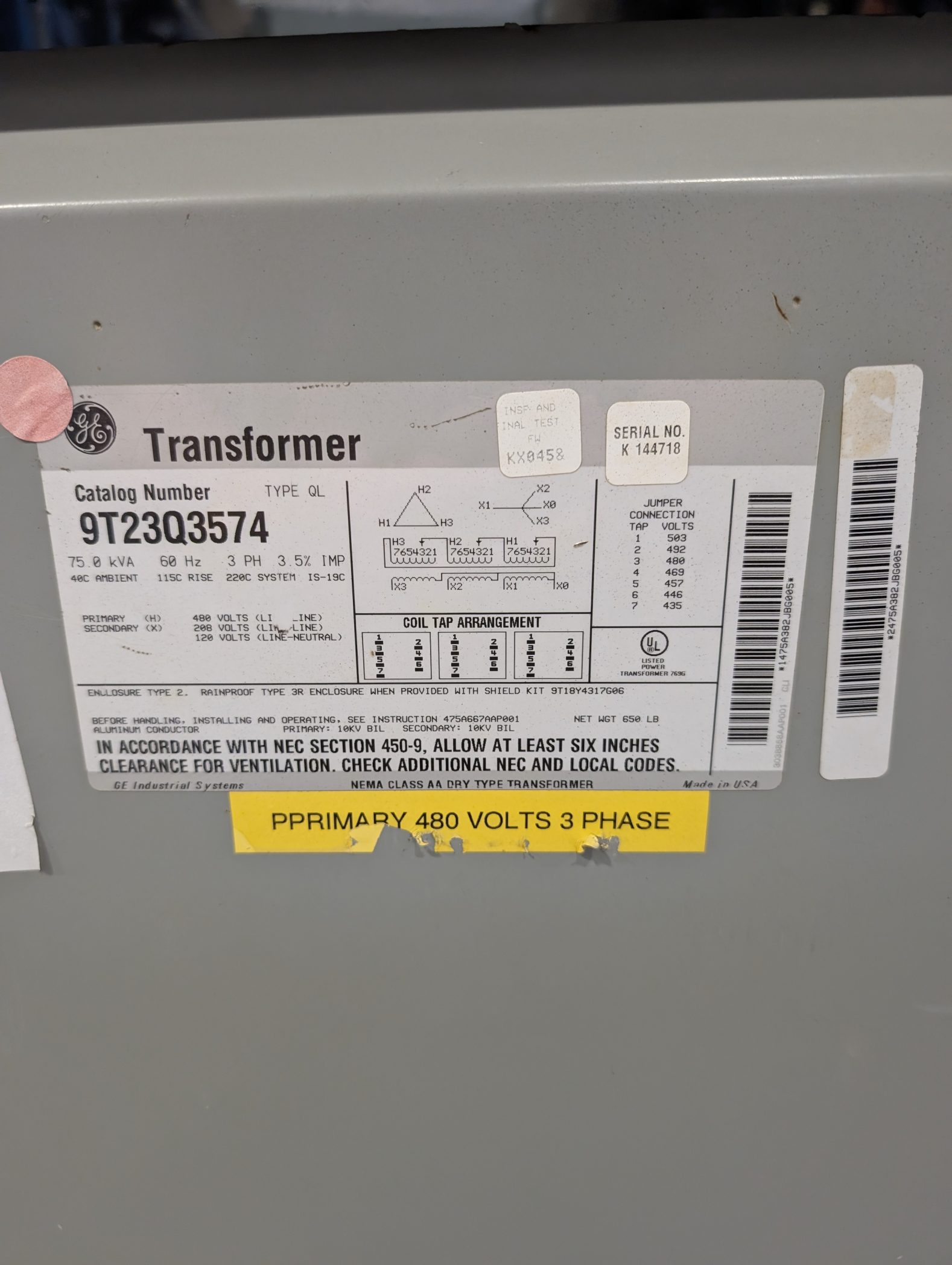

- Catalog / Part Number: 9T23Q3574
- Transformer Type: Dry-Type, General-Purpose
- Power Rating: 75 kVA
- Number of Phases: 3-Phase
- Primary Voltage: 480V Delta
- Secondary Voltage: 208Y/120V
- Frequency: 60 Hz
- Temperature Rating: 115 °C rise
- Impedance: 3.0%
- Taps: 2 + / 4 – (or standard voltage compensation taps)
- Weight: ~605 lbs (274 kg)
- Dimensions (Approx.):
- Height: 40.00 inches
- Depth: 23.00 inches
- Standards: Meets NEMA, ANSI, UL, and IEEE standards (such as UL 506/1561 and NEMA ST-20
