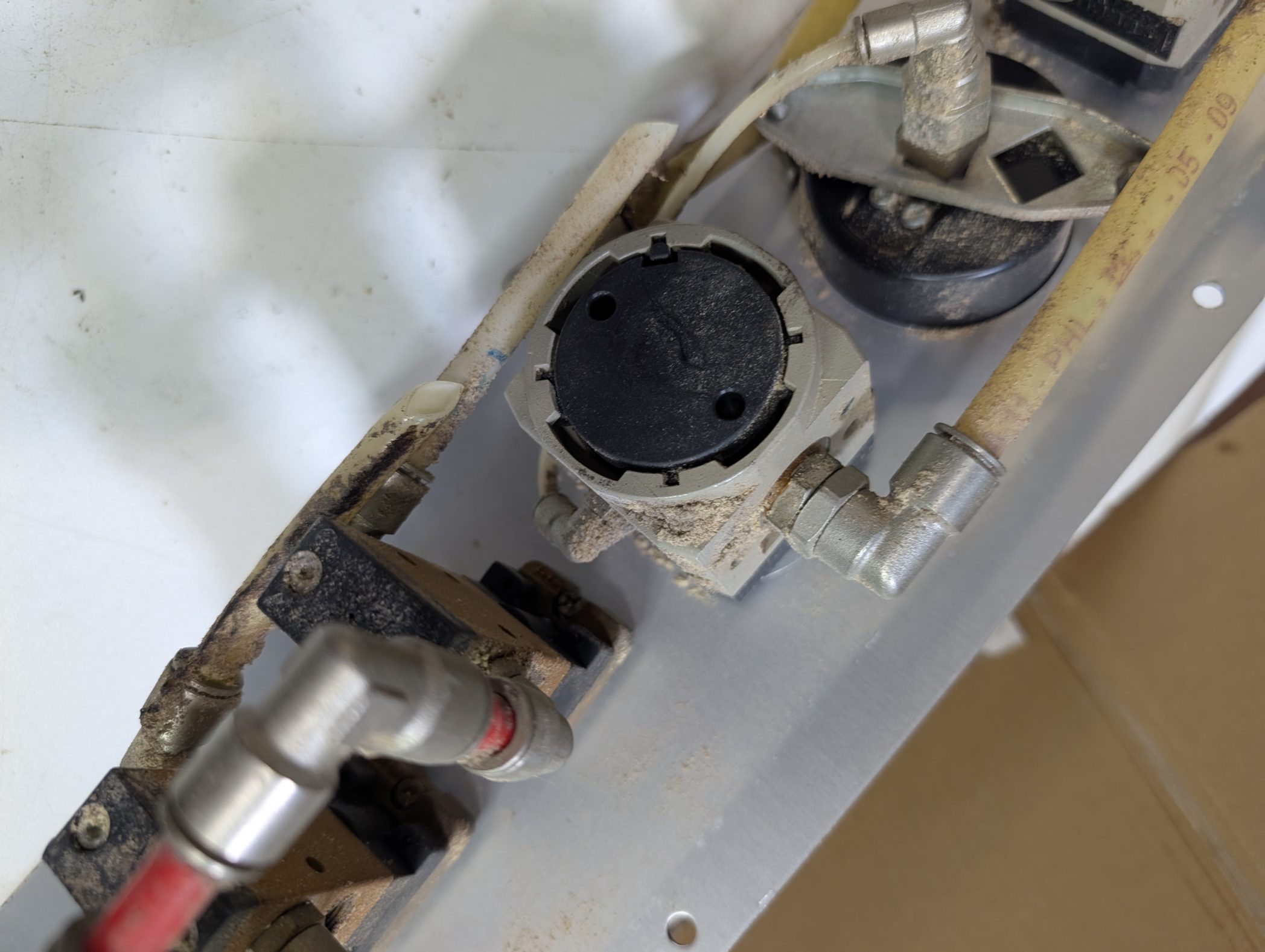

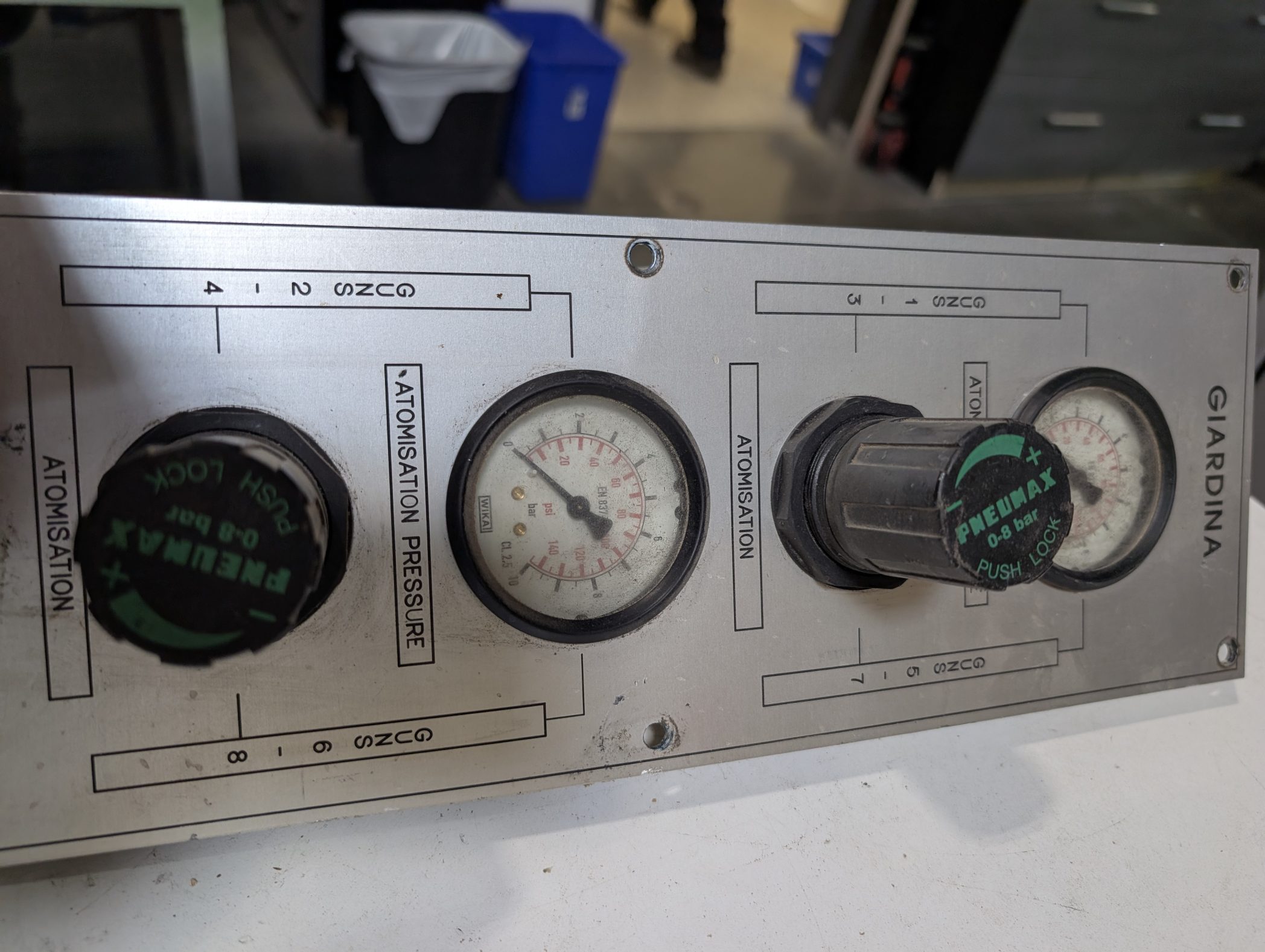

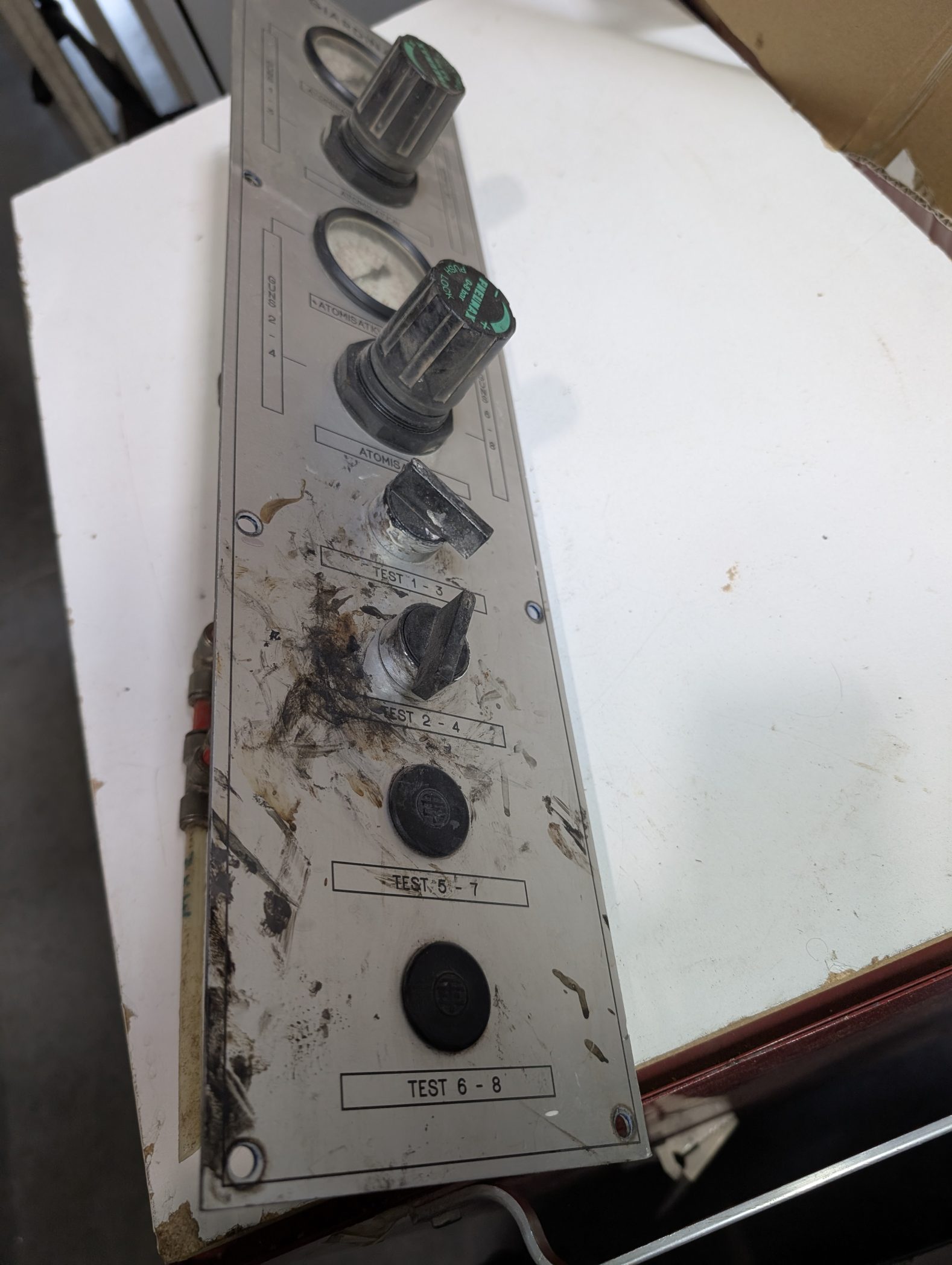

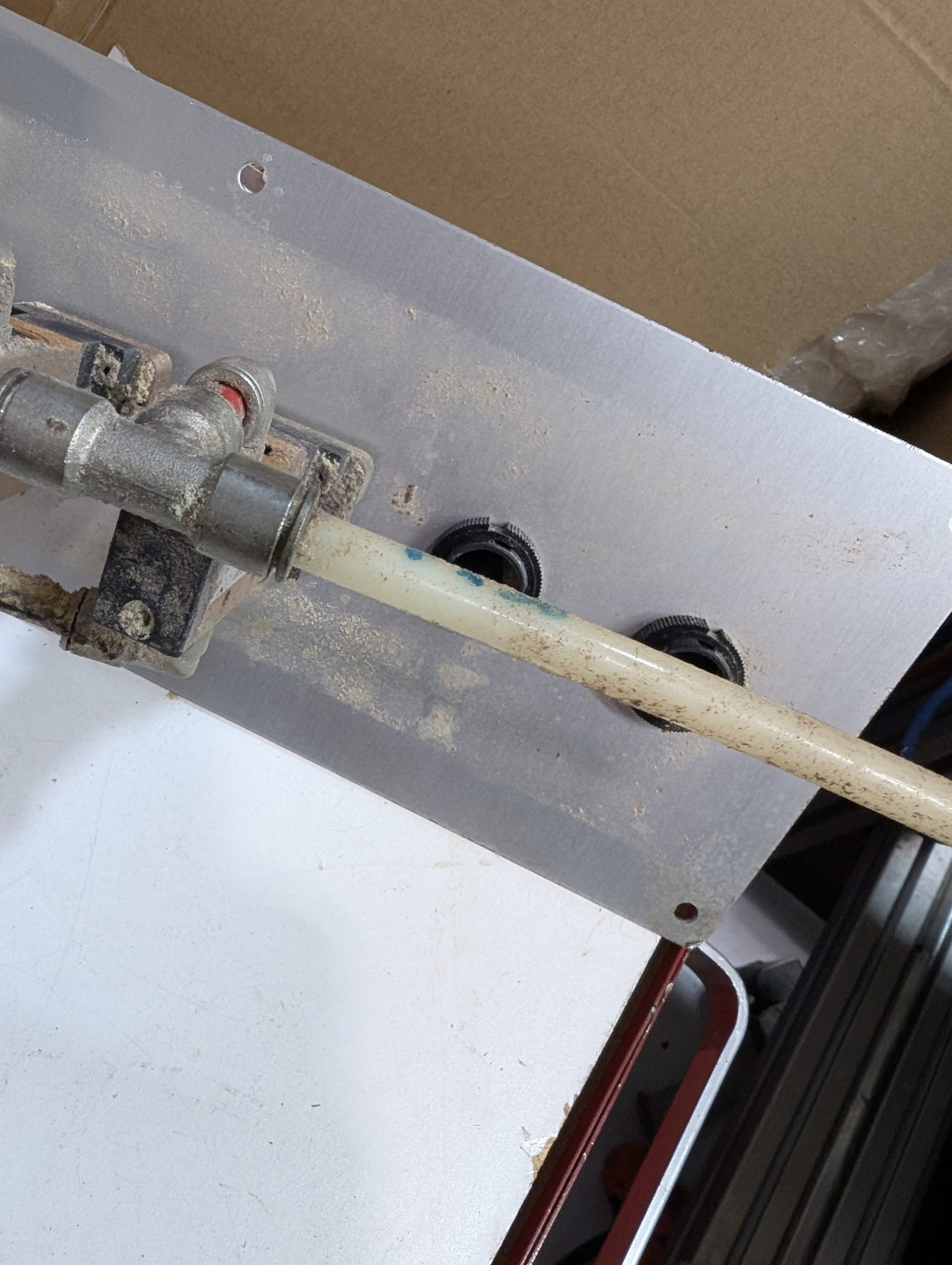

The pneumatic and atomization management on this machinery is handled via an integrated operator control panel. This setup manages independent dual-circuit fluid pressures and automatic spray gun triggering.
| Parameter | Specification |
|---|---|
| Working Width | 1,300 mm to 1,400 mm |
| Max. Workpiece Thickness | 45 mm to 100 mm (depending on setup) |
| Min. Material Length | 300 mm |
| Adjustable Feed Speed | 2.3 to 7 m/min |
| Conveyor System | Self-cleaning continuous belt system with paint recovery squeegees |
| Spray Configuration | 2 independent reciprocating spray arms (traverse devices) |
| Total Number of Guns | 8 guns total (2 circuits × 4 guns per arm, typically AVX/ATX types) |
| Gun Drive Speed | 60 to 110 m/min |
| Air Ventilation Volume | 12,000 m³/h (Inlet) / 12,000 m³/h (Exhaust) |
| Total Installed Power | 15.2 kW – 15.6 kW |
| Machine Weight | ~4,000 kg |
