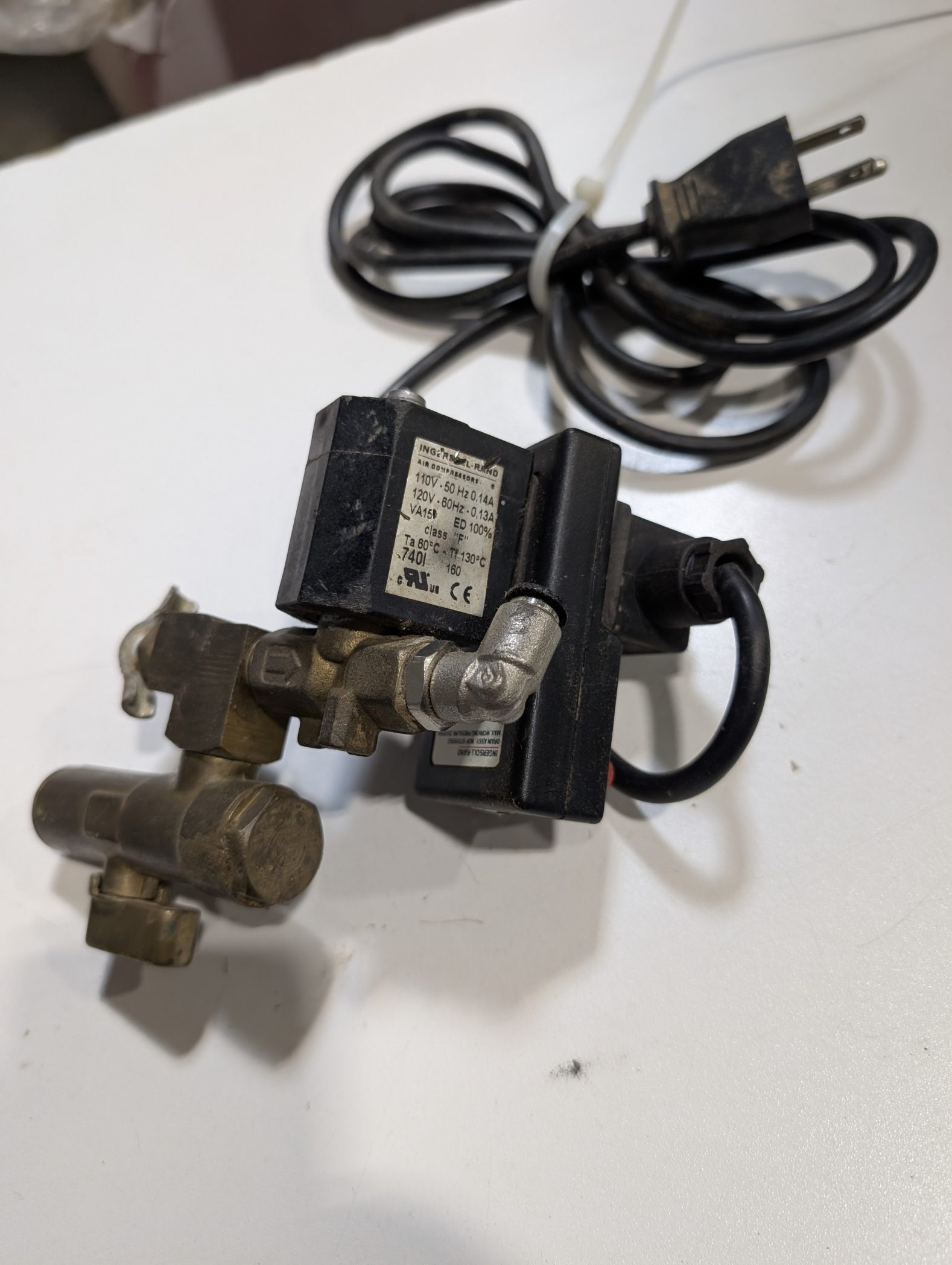

Ingersoll Rand EDV-2000 Auto Electric Drain Valve With adjustable Cycles
Specifications:
The Ingersoll Rand EDV-2000 is an automatic, electronic timed drain valve designed to remove moisture and condensate from compressed air systems, including receivers, compressors, dryers, filters, and drip legs.

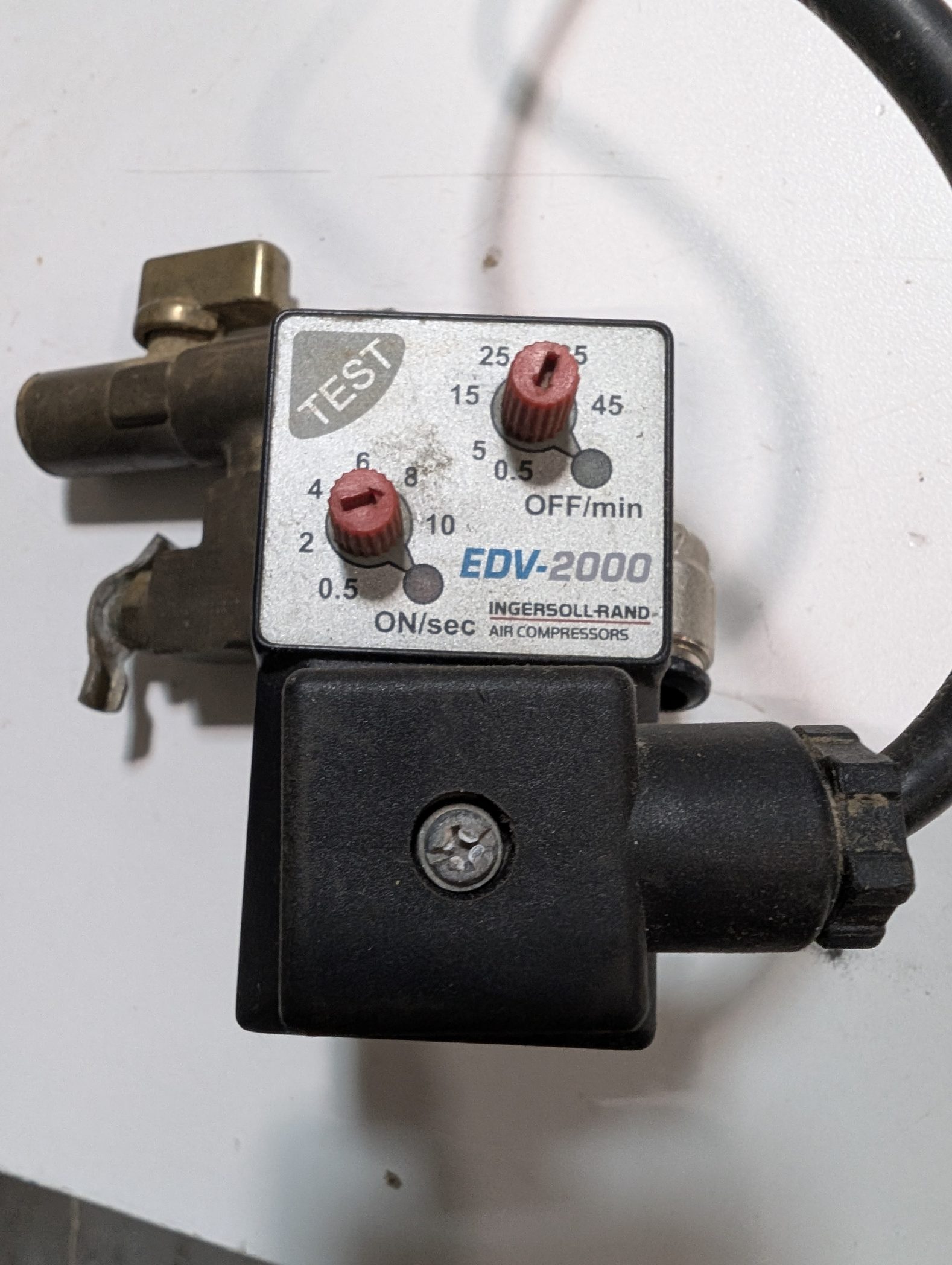

Design: Zero air-loss design with adjustable “time on” and “time off” dials to match system demands.
Protection: NEMA 4 (IP65) enclosure rating for resistance against water and particulates.
Clog Prevention: Includes an integrated strainer/ball valve combination and a Y-filter with a mesh screen.
Safety: Features an exclusive SBV hex cap with a whistle notch to alert if the strainer is being serviced under pressure.
Pressure Rating: Maximum operating pressure up to 250 PSI (depending on the specific sub-model variant).

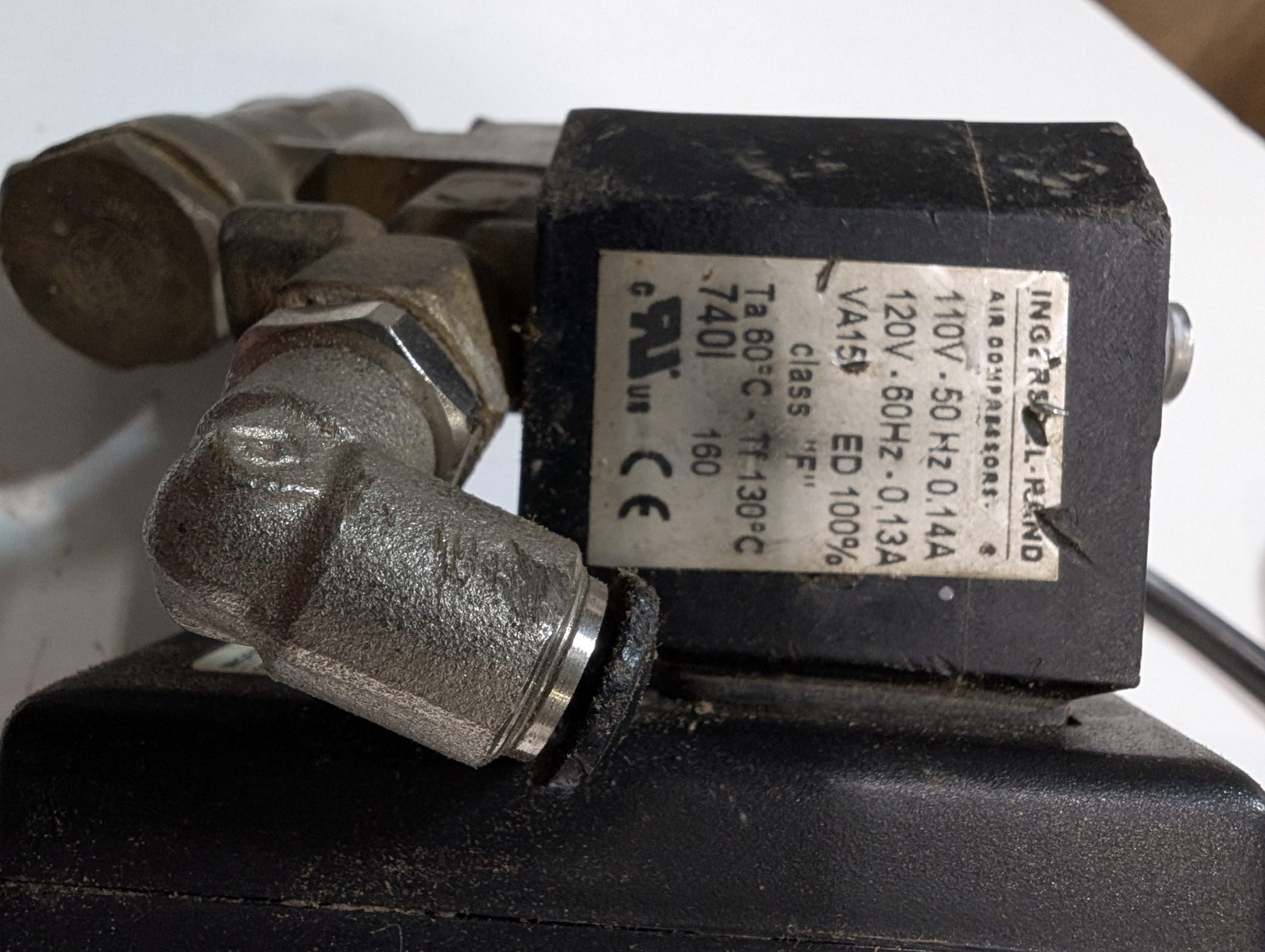

Electrical: Commonly configured for 110V/120V or 230V/240V power sources
