Machine Parts
/
Edgebanders Parts
/
Pizzatto FZ 531 3A Limit Switch
SKU: 120-601
CAD $
53.65

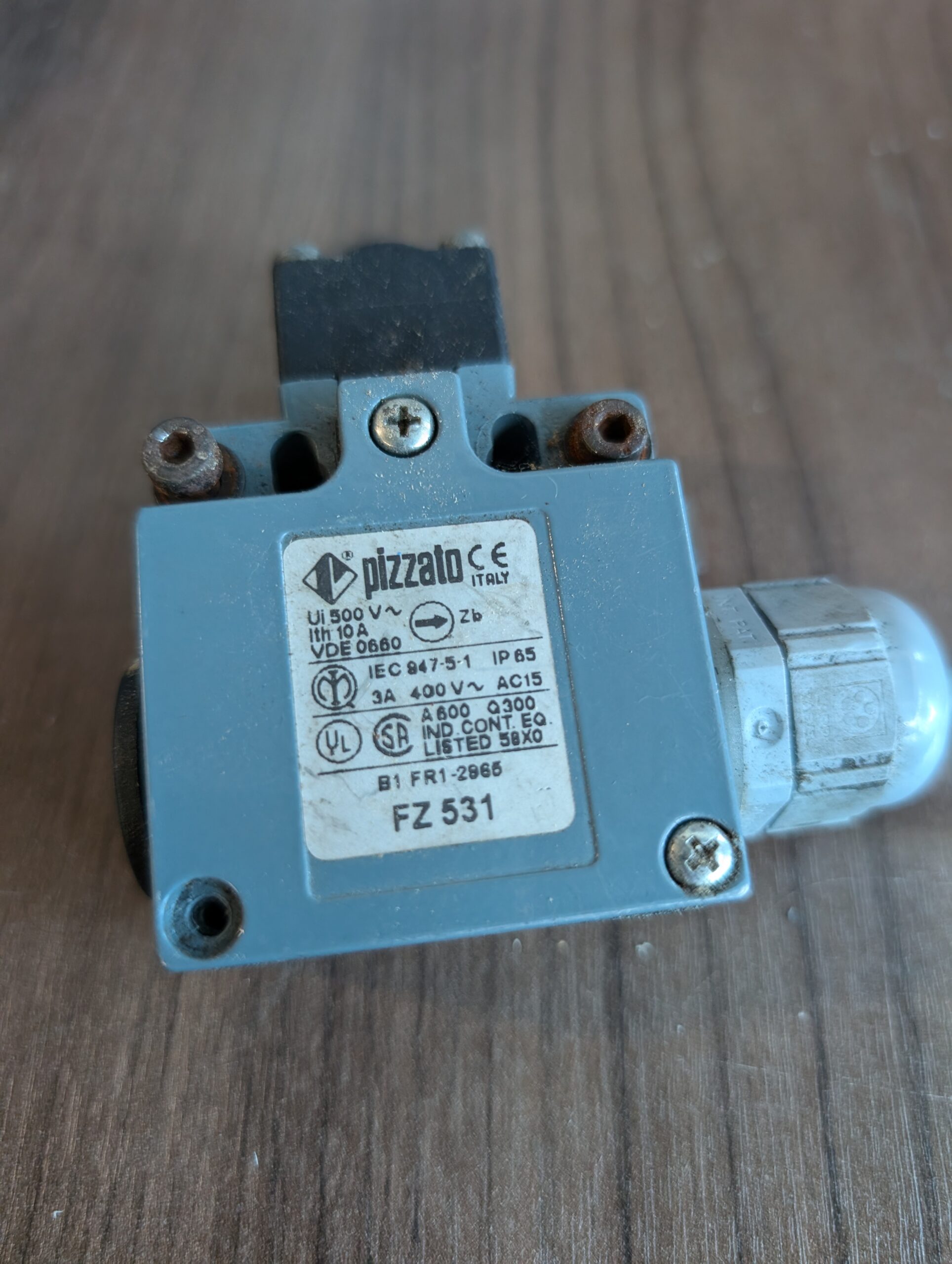

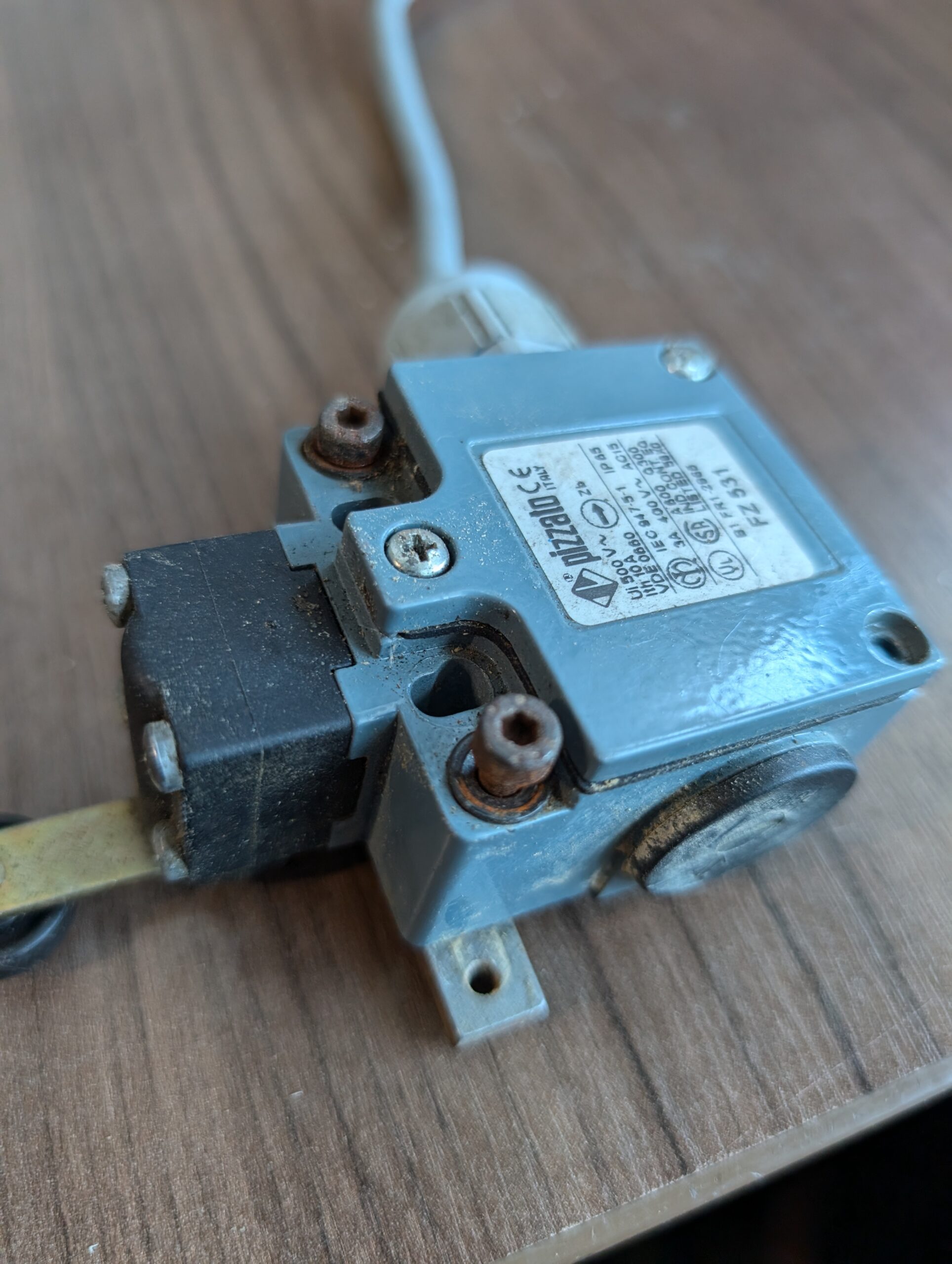

Pizzatto FZ 531 3A Limit Switch
Add to cart
Contact Us
Description
Ship Estimate
Specifications:
The
Pizzato FZ 531
is an industrial
limit switch
featuring a
robust metal housing and a rotating roller lever actuator
.
Manufacturer:
Pizzato Elettrica
Housing Material:
Metal (FZ series features a two-conduit entry metal body)
Actuator Type:
Rotary lever with a plastic/technopolymer roller (R = 35 mm, roller diameter ∅ 18 mm)
Output Configuration:
1NO + 1NC (Normally Open + Normally Closed), snap-action contacts
Max Contact Current:
10A
Switched Voltage:
Max 500V AC, max 250V DC
AC Contacts Rating:
6A / 250V AC (at resistive load)
DC Contacts Rating:
6A / 24V DC (at resistive load)
IP Rating (Protection):
IP67
Cable Connection:
PG 13.5 threaded cable entry
Operating Temperature:
-25°C to +80°C
Mechanical Durability:
20,000,000 cycles
Body Dimensions:
44.5 × 50 × 31.5 mm
