SKU: 960-15 CAD $79.00

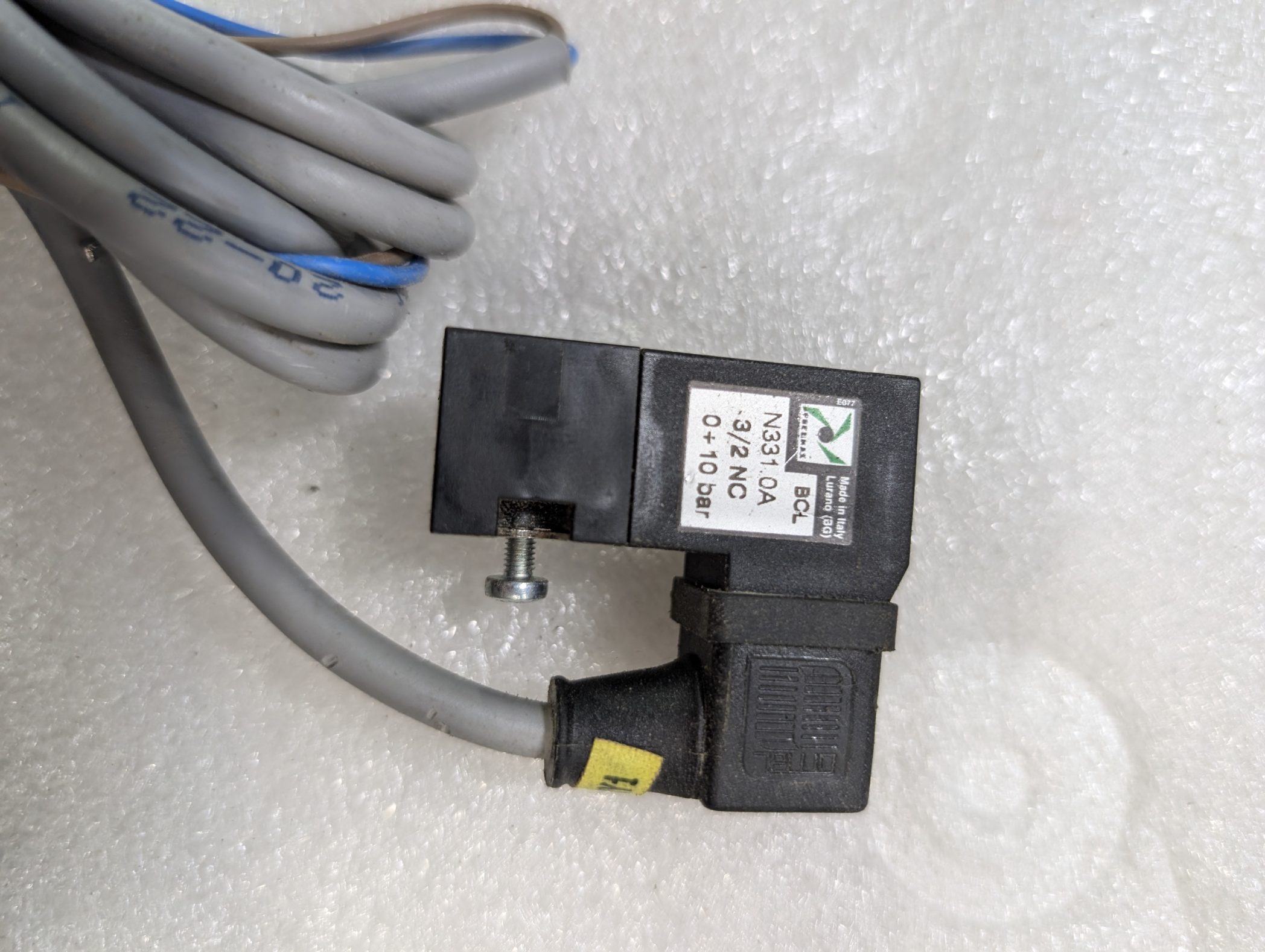

Pneumax N331 OA Solinoid

Specifications:

The Pneumax N331.0A (often referenced with the OA or .0A suffix) is a miniature 15mm 3/2 normally closed pneumatic solenoid valve. It typically operates on 24V DC consuming 2.3 W, handles pressure ranges from 0 to 10 bar, and provides a flow rate around 30 L/min.

Technical Specifications
  • Manufacturer: Pneumax
  • Series: 300 Series, 15mm width
  • Function: 3/2 Way Normally Closed (NC)
  • Pressure Range: 0 to 10 bar (0 to 145 psi)
  • Voltage: 24V DC
  • Power Consumption: 2.3 Watts
  • Orifice / Bore Size: Ø1.1 mm
  • Flow Rate: 30 L/min
  • Temperature Range: -5°C to +50°C
  • Protection Class: IP65
