Siemens 3VU1300-1MF00 Starter Motor Protector
SKU: 120-91
CAD $
179.63
Siemens 3VU1300-1MF00 Starter Motor Protector
Add to cart
Contact Us
Description
Ship Estimate
Specifications:
The

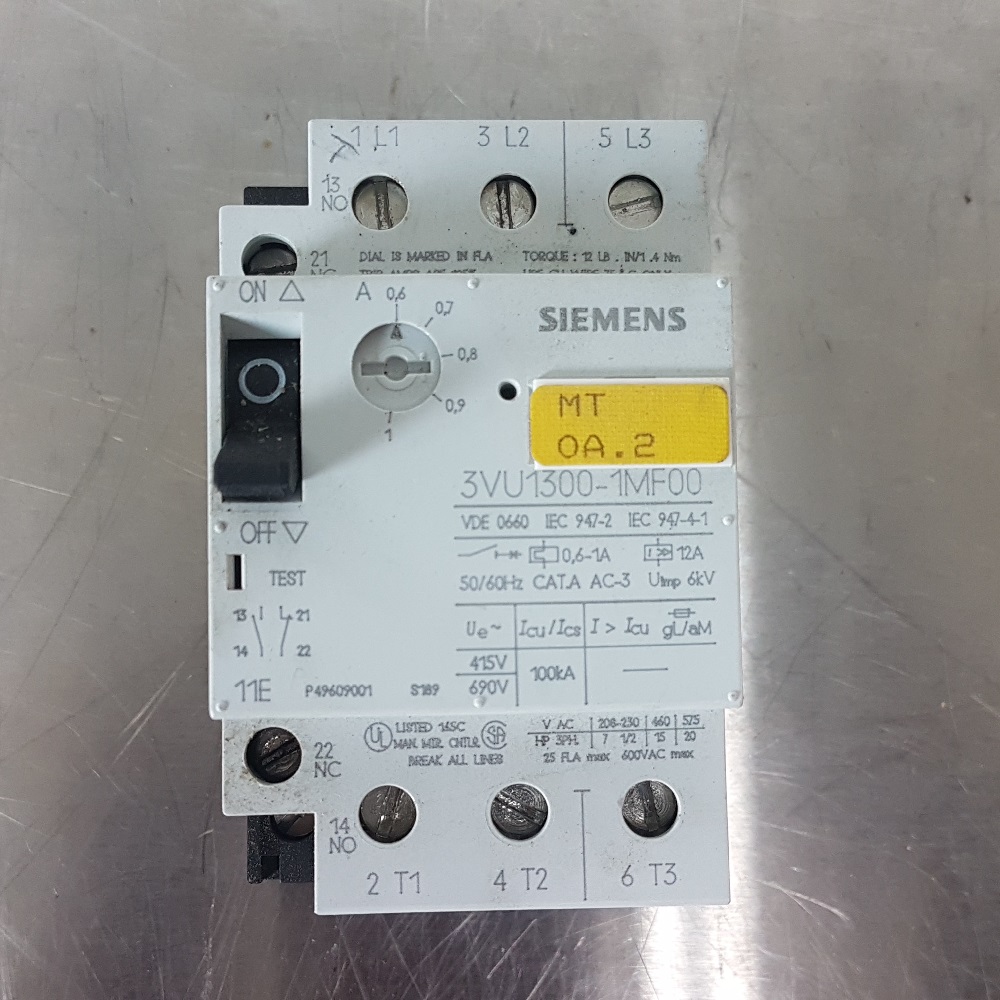

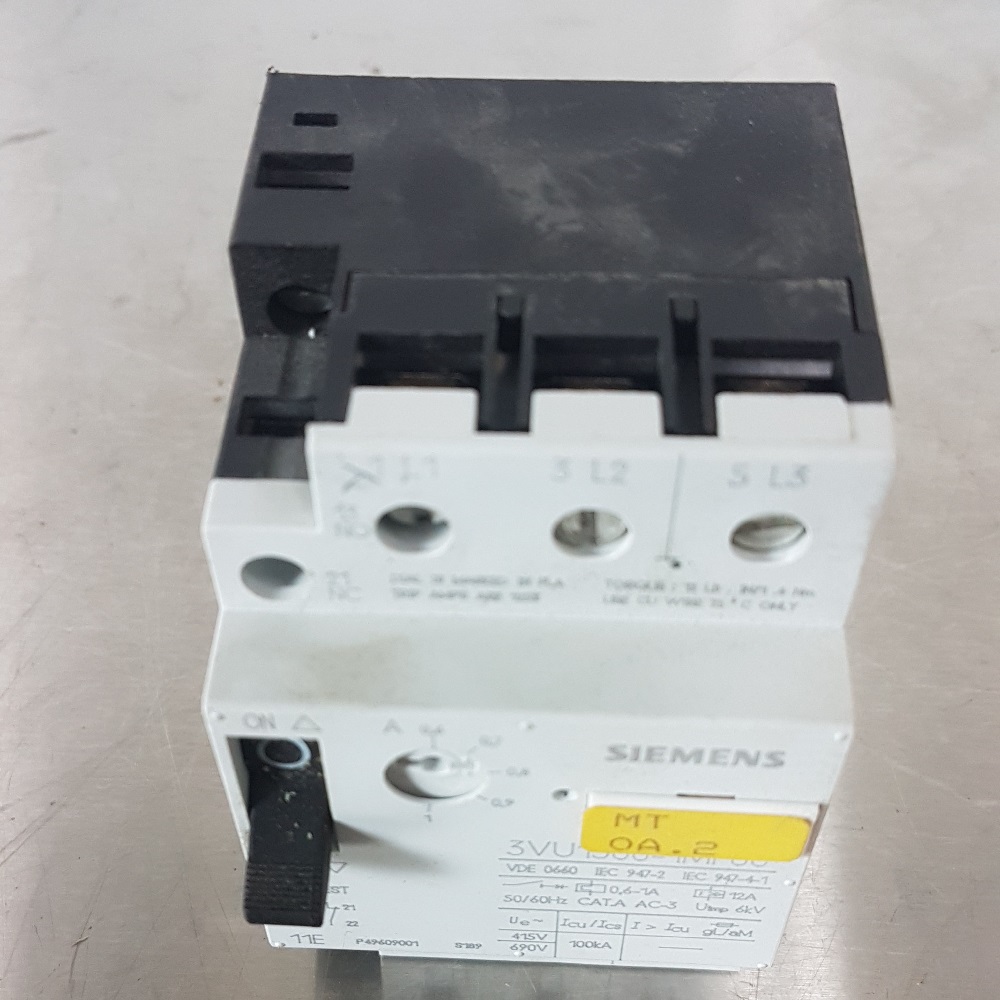

Siemens 3VU1300-1MF00
is a
3-pole thermal-magnetic circuit breaker designed for motor protection
.
Device Type:
Motor Protection Circuit Breaker / Motor Starter Protector
Number of Poles:
3-pole (3P)
Current Adjustment Range (Thermal Release / A-Release):
0.6 A to 1.0 A
Magnetic Release (N-Release):
12 A
Rated Operating Voltage:
Up to 690 V AC (max), 600 V AC (UL/CSA)
Frequency:
50/60 Hz
Auxiliary Contacts:
1 Normally Open (NO) + 1 Normally Closed (NC)
Terminal Type:
Screw terminals
Trip Class:
Class 10
Product Lifecycle:
Discontinued by the manufacturer (End of product lifecycle)
