Specifications:

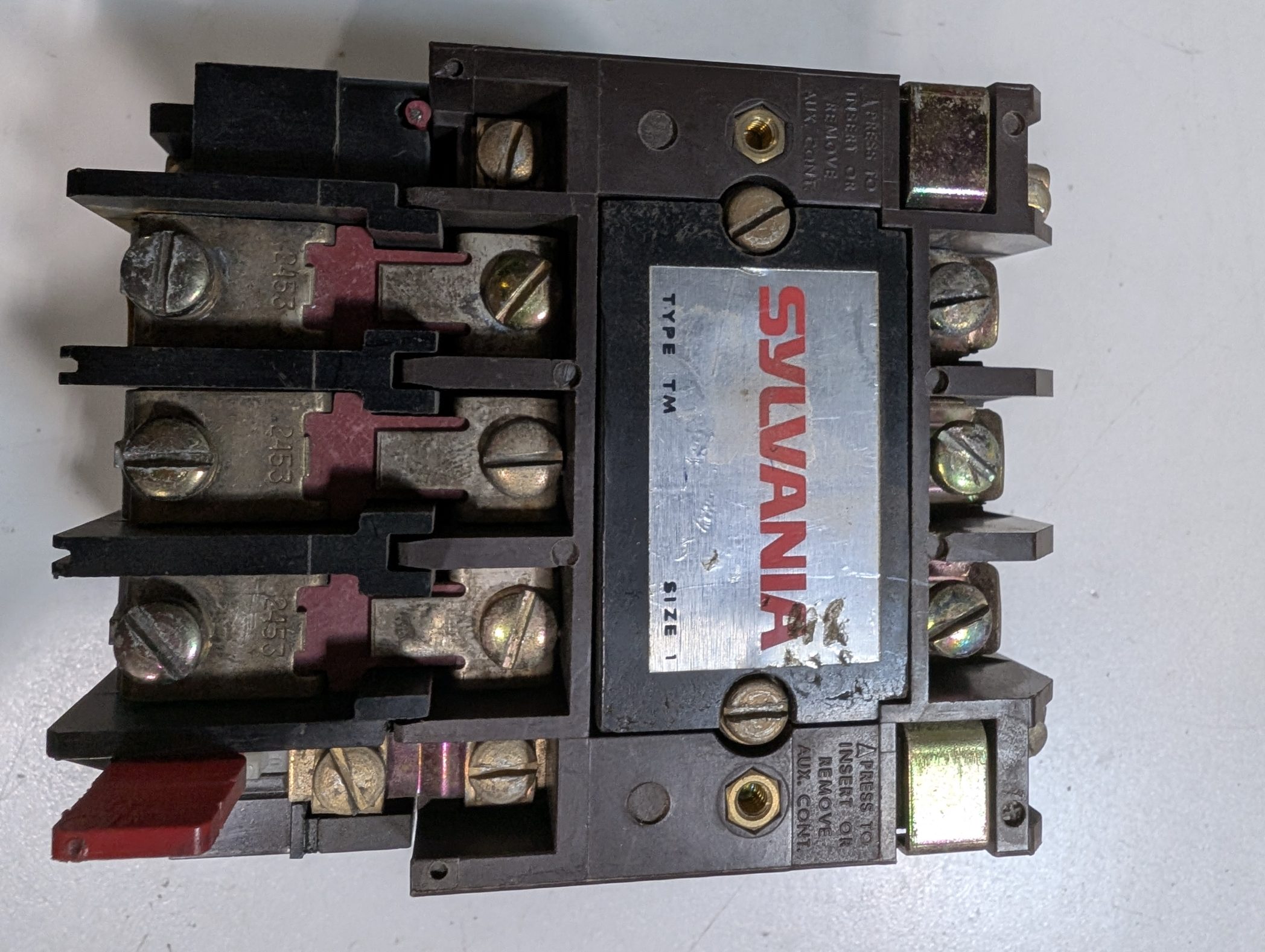

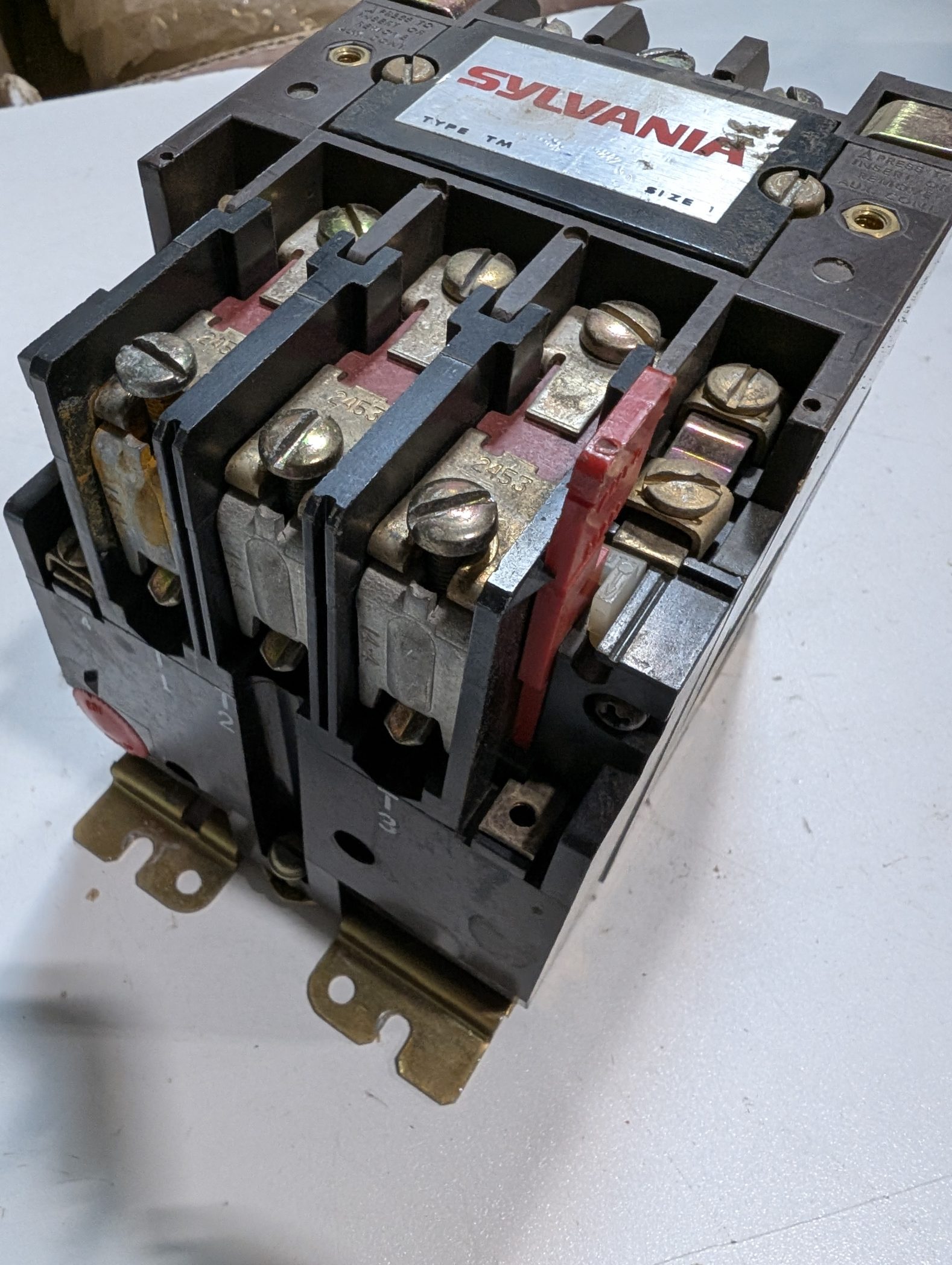

The Sylvania (Joslyn Clark) T13U031 is a NEMA Size 1, 3-phase magnetic motor starter and contactor rated for up to 600V AC maximum.
- Manufacturer Brand: Sylvania / Joslyn Clark (Type TM Series)
- Continuous Current Rating: 27 Amps
- Voltage Rating: 600V AC Max
- Number of Poles / Phase: 3-Pole, 3-Phase
- Coil Voltage: Model TB-159-1 coil rated at 110 VAC @ 50 Hz / 120 VAC @ 60 Hz

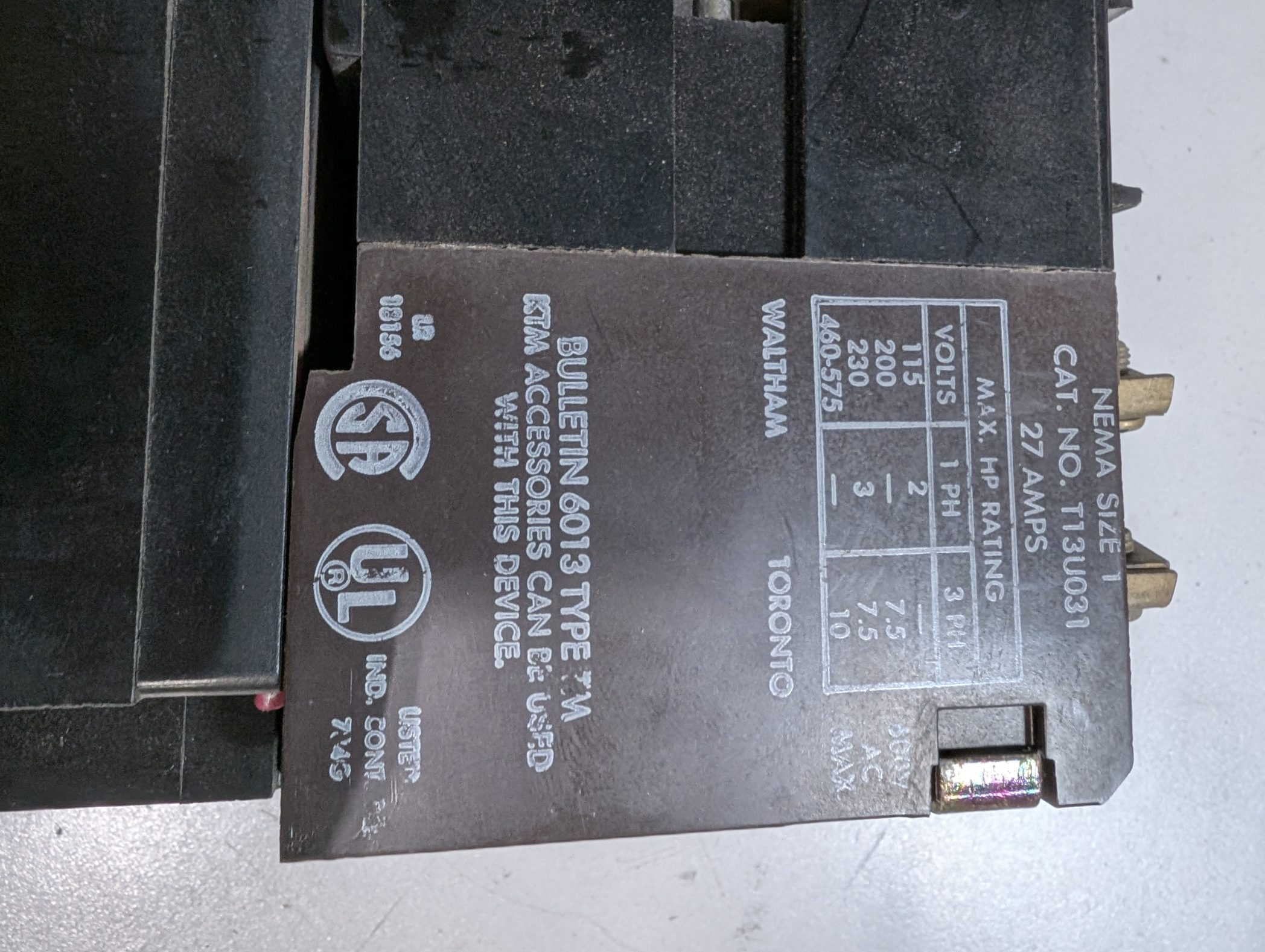

Maximum Horsepower Ratings (3-Phase)
