    SKU: 120-126 CAD $423.00

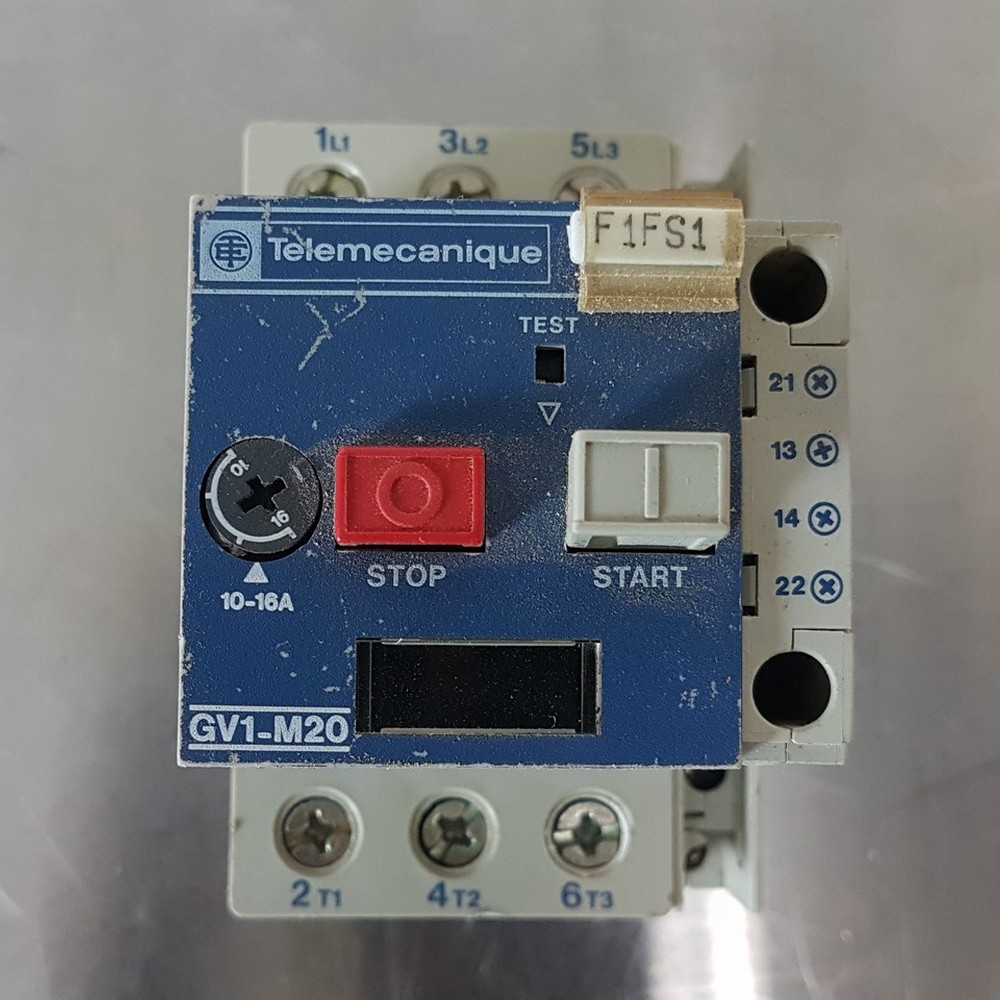

    Telemecanique Motor Circuit Protector GV1-M20 With GV1-A01 Auxiliary

    Used Telemecanique Motor Circuit Protector GV1-M20 With GV1-A01 Auxiliary
    Used Telemecanique Motor Circuit Protector GV1-M20 With GV1-A01 Auxiliary Used Telemecanique Motor Circuit Protector GV1-M20 With GV1-A01 Auxiliary Used Telemecanique Motor Circuit Protector GV1-M20 With GV1-A01 Auxiliary

    Specifications:

    The Telemecanique GV1-M20 is a 3-pole manual motor protector with an adjustable thermal current range of 10.0 to 16.0 Amperes and a max operating voltage of 600V/660V AC, while the Telemecanique GV2-AN11 is a side-mount auxiliary contact block featuring 1 Normally Open (NO) and 1 Normally Closed (NC) contact rated for up to 5A–6A.

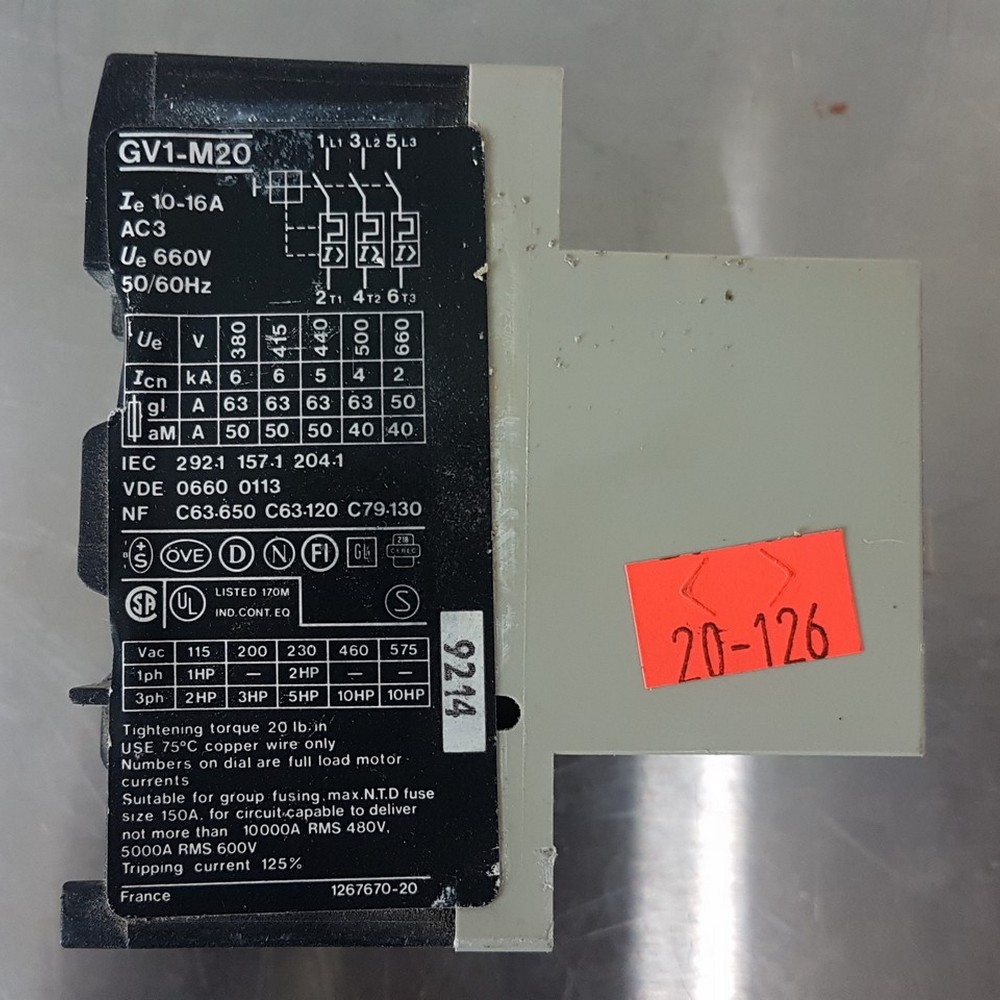

    Telemecanique GV1-M20 Specifications
    • Type: 3-pole manual motor protector / circuit breaker (discontinued by manufacturer)
    • Thermal Protection Range: 10.0 – 16.0 A (adjustable)
    • Magnetic Tripping Current: Fixed at approximately 208 A
    • Maximum Voltage Rating: 600V / 660V AC, 50/60 Hz
    • Mounting: DIN rail mountable
    GV2-AN11 Auxiliary Contact Specifications
    • Contact Composition: 1 NO / 1 NC (1 Normally Open, 1 Normally Closed)
    • Mounting Type: Side mount
    • Electrical Rating: Up to 5A–6A, 600V AC / 690V max operational voltage
    Weight 0.36 lbs
    Dimensions 5 × 5 × 5 in
